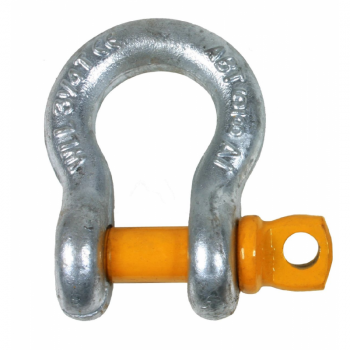

Шегел Омега с винт 25,0 Т / 51 мм
| A (mm): | 73 |
| B (mm): | 51 |
| C (mm): | 178 |
| D (mm): | 47 |
| H (mm): | 313 |
| E (mm): | 127 |
| F (mm): | 106 |
| G (mm): | 225 |
| Type (t): | Bow |
| I (mm): | 25.5 |
| M (mm): | 231 |
| N (mm): | 57 |
Шегел тип D с винт 0,75 T / 9,5 мм
| Weight (kg/100kpl): | 0.08 |
| WLL (t) / Tовароподемност (Т): | 0.75 |
| A (mm): | 13.5 |
| B (mm): | 9.5 |
| C (mm): | 26 |
| D (mm): | 8 |
| H (mm): | 48.5 |
| F (mm): | 19 |
| G (mm): | 29.5 |
| Type (t): | DEE |
| I (mm): | 5.5 |
| M (mm): | 42 |
Шегел тип D с винт 0,33 Т/ 6,5 мм
| Weight (kg/100kpl): | 0.02 |
| WLL (t) / Tовароподемност (Т): | 0.33 |
| A (mm): | 9.5 |
| B (mm): | 6.5 |
| C (mm): | 16 |
| D (mm): | 5 |
| H (mm): | 31 |
| F (mm): | 14 |
| G (mm): | 20 |
| Type (t): | DEE |
| I (mm): | 4 |
| M (mm): | 28.5 |
Шегел тип D с винт 1,5 Т / 13 мм
| Weight (kg/100kpl): | 0.2 |
| WLL (t) / Tовароподемност (Т): | 1.5 |
| A (mm): | 19 |
| B (mm): | 13 |
| C (mm): | 36.5 |
| D (mm): | 11 |
| H (mm): | 67.5 |
| F (mm): | 27 |
| G (mm): | 41.5 |
| Type (t): | DEE |
| I (mm): | 8 |
| M (mm): | 60.5 |
Шегел тип D с винт 0,5 T / 8 мм
| Weight (kg/100kpl): | 0.05 |
| WLL (t) / Tовароподемност (Т): | 0.5 |
| A (mm): | 12 |
| B (mm): | 8 |
| C (mm): | 22.5 |
| D (mm): | 6.5 |
| H (mm): | 40.5 |
| F (mm): | 15.5 |
| G (mm): | 24.5 |
| Type (t): | DEE |
| I (mm): | 5 |
| M (mm): | 35 |
Шегел тип Омега М20, нетестван
| Pin size d4 (mm): | 20 |
| Breaking strength (mm): | 5.5 |
| Weight (kg/100kpl): | 92 |
| b1 (mm): | 38 |
| h1 (mm): | 74 |
Шегел тип Омега М6, нетестван
| Pin size d4 (mm): | 6 |
| Breaking strength (mm): | 1.5 |
| Weight (kg/100kpl): | 13.4 |
| b1 (mm): | 6,5 |
| h1 (mm): | 31 |
Шегел тип Омега М10, нетестван
| Pin size d4 (mm): | 10 |
| Breaking strength (mm): | 1.5 |
| Weight (kg/100kpl): | 13.4 |
| b1 (mm): | 20 |
| h1 (mm): | 40 |
Шегел тип Омега М12, нетестван
| Pin size d4 (mm): | 12 |
| Breaking strength (mm): | 2.5 |
| Weight (kg/100kpl): | 25 |
| b1 (mm): | 25 |
| h1 (mm): | 48 |
Шегел тип Омега М14, нетестван
| Pin size d4 (mm): | 14 |
| Breaking strength (mm): | 3 |
| Weight (kg/100kpl): | 34 |
| b1 (mm): | 28 |
| h1 (mm): | 53 |
Шегел тип Омега М18, нетестван
| Pin size d5 (mm): | 18 |
| Breaking strength (mm): | 4 |
| Weight (kg/100kpl): | 53 |
| b1 (mm): | 32 |
| h1 (mm): | 32 |
Шегел тип Омега М16, нетестван
| Pin size d4 (mm): | 16 |
| Breaking strength (mm): | 4 |
| Weight (kg/100kpl): | 53 |
| b1 (mm): | 32 |
| h1 (mm): | 32 |
Шегел тип D с винт 13,5 Т / 38 мм
| Weight (kg/100kpl): | 5.28 |
| WLL (t) / Tовароподемност (Т): | 13.5 |
| A (mm): | 57 |
| B (mm): | 38 |
| C (mm): | 111 |
| D (mm): | 35 |
| H (mm): | 210 |
| F (mm): | 84 |
| G (mm): | 127 |
| Type (t): | DEE |
| I (mm): | 19 |
| M (mm): | 174 |
Шегел тип D с винт 17,0 Т / 41,5 мм
| Weight (kg/100kpl): | 7.23 |
| WLL (t) / Tовароподемност (Т): | 17 |
| A (mm): | 60.5 |
| B (mm): | 41.5 |
| C (mm): | 122 |
| D (mm): | 38 |
| H (mm): | 230 |
| F (mm): | 92 |
| G (mm): | 137 |
| Type (t): | DEE |
| I (mm): | 20.5 |
| M (mm): | 187 |
Шегел тип D с винт 4,75 Т / 22,5 мм
| Weight (kg/100kpl): | 1.2 |
| WLL (t) / Tовароподемност (Т): | 4.75 |
| A (mm): | 32 |
| B (mm): | 22.5 |
| C (mm): | 60.5 |
| D (mm): | 19 |
| H (mm): | 115 |
| F (mm): | 46 |
| G (mm): | 70 |
| Type (t): | DEE |
| I (mm): | 12.5 |
| M (mm): | 101 |
Шегел тип D с винт 6,5 Т / 25,5 мм
| Weight (kg/100kpl): | 1.43 |
| WLL (t) / Tовароподемност (Т): | 6.5 |
| A (mm): | 36.5 |
| B (mm): | 25.5 |
| C (mm): | 71.5 |
| D (mm): | 22.5 |
| H (mm): | 135 |
| F (mm): | 53 |
| G (mm): | 81 |
| Type (t): | DEE |
| I (mm): | 12.5 |
| M (mm): | 114 |
Шегел тип D с винт 1,0 Т / 11 мм
| Weight (kg/100kpl): | 0.13 |
| WLL (t) / Tовароподемност (Т): | 1 |
| A (mm): | 17 |
| B (mm): | 11 |
| C (mm): | 32 |
| D (mm): | 9.5 |
| H (mm): | 58.5 |
| F (mm): | 23 |
| G (mm): | 36 |
| Type (t): | DEE |
| I (mm): | 6.5 |
| M (mm): | 51.5 |
Шегел тип D с винт 12,0 Т / 35 мм
| Weight (kg/100kpl): | 4.11 |
| WLL (t) / Tовароподемност (Т): | 12 |
| A (mm): | 51.5 |
| B (mm): | 35 |
| C (mm): | 100 |
| D (mm): | 32 |
| H (mm): | 191 |
| F (mm): | 76 |
| G (mm): | 115 |
| Type (t): | DEE |
| I (mm): | 17.5 |
| M (mm): | 156 |
Шегел тип D с винт 3,25 Т / 19 мм
| Weight (kg/100kpl): | 0.57 |
| WLL (t) / Tовароподемност (Т): | 3.25 |
| A (mm): | 27 |
| B (mm): | 19 |
| C (mm): | 51 |
| D (mm): | 16 |
| H (mm): | 95.5 |
| F (mm): | 37 |
| G (mm): | 58.5 |
| Type (t): | DEE |
| I (mm): | 11 |
| M (mm): | 85 |
Шегел тип D с винт 2,0 Т / 16 мм
| Weight (kg/100kpl): | 0.27 |
| WLL (t) / Tовароподемност (Т): | 2 |
| A (mm): | 20.5 |
| B (mm): | 16 |
| C (mm): | 41.5 |
| D (mm): | 12.5 |
| H (mm): | 77 |
| F (mm): | 30 |
| G (mm): | 46 |
| Type (t): | DEE |
| I (mm): | 9.5 |
| M (mm): | 68.5 |
